Indoor cabling optical cable product series
Product Application:
The optical cable is suitable for multi-directional transmission between instruments or communication equipment.
Product features:
Small outer diameter, light weight, flame retardant, easy to peel, and high flexibility;
High strength aramid reinforcement, good tensile performance;
The tight dry structure is convenient for construction and maintenance.
Operating temperature: -20℃ ~ +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.

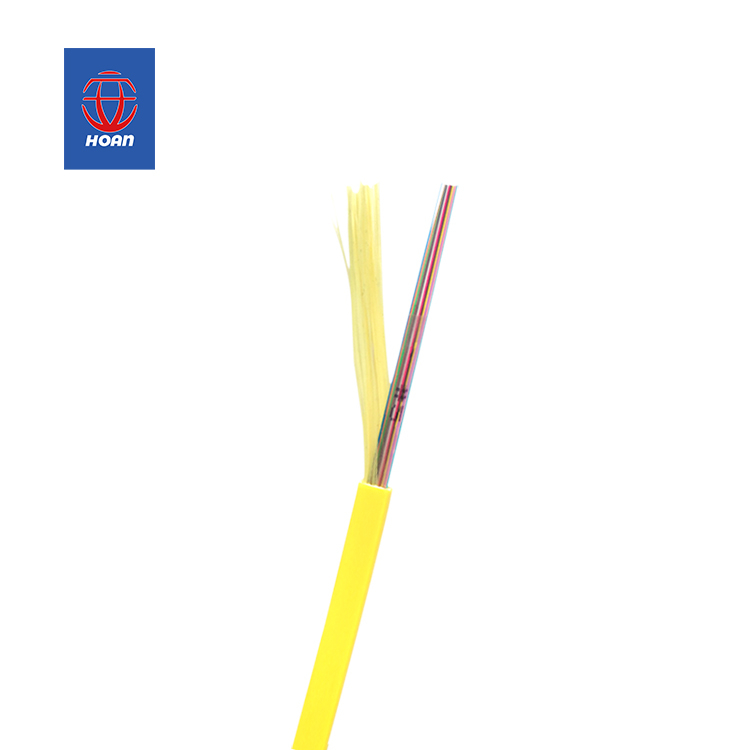

GJDFH

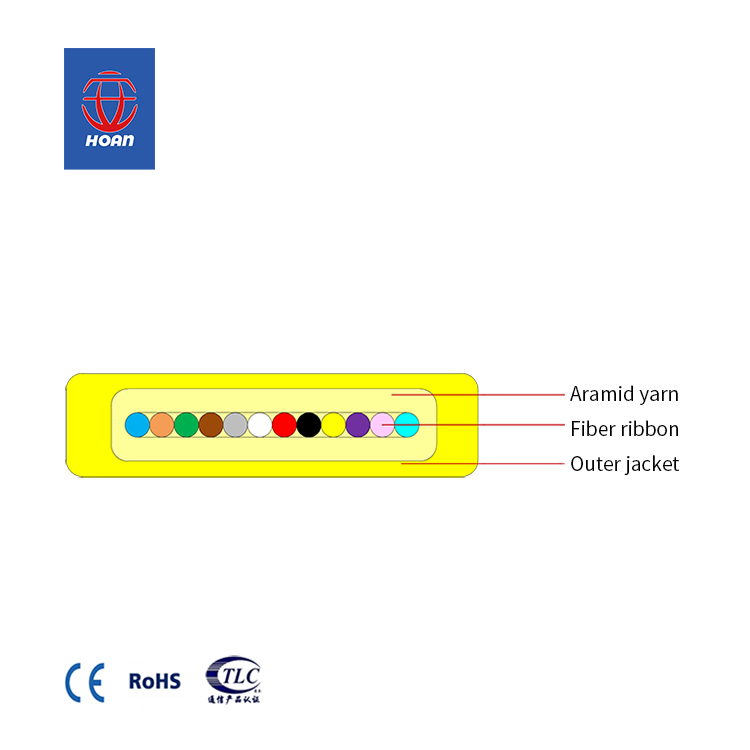

Product structure diagram:
product description ：
GJDFH (Non-metallic Reinforced Component, Fiber Optic Ribbon Structure, LSZH Outer Sheath Communication Indoor Light Ribbon Optical Cable)
operative norm ：
YD/T 1258.5-2005 Indoor Optical Cable Series: Fiber Optic Ribbon Cable
Technical parameters (typical values):
Number of cores | Optical cable specifications | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
12 | 2.2*4.7 | 10.8 | 100 | 300 | 300 | 1000 | 10D | 20D |
Note
1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
3. The specific design of flame retardant, rodent and ant-proof optical cables can be carried out according to customer needs.
