FTTX introduces product series

Product Application:

The cable is suitable for fiber to the home.

Product features:

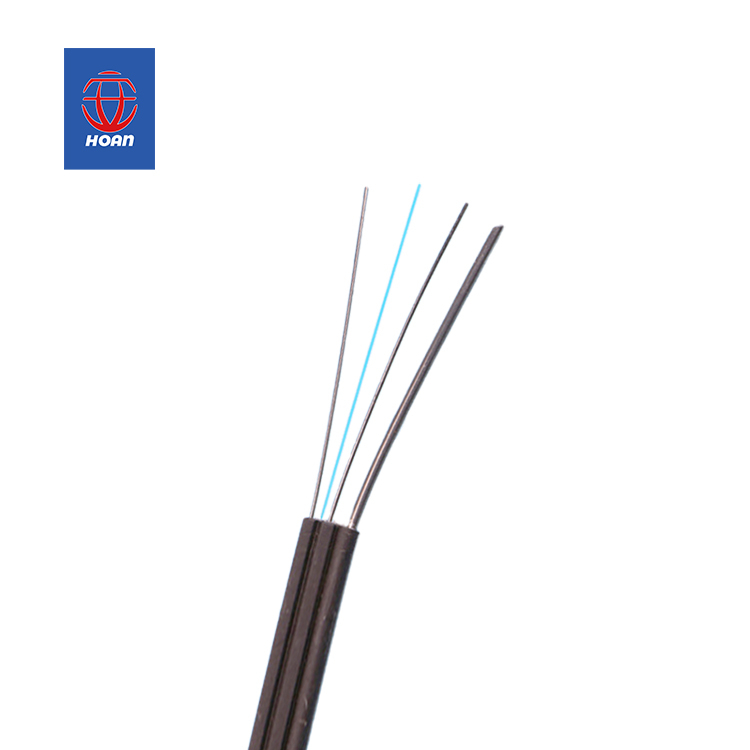

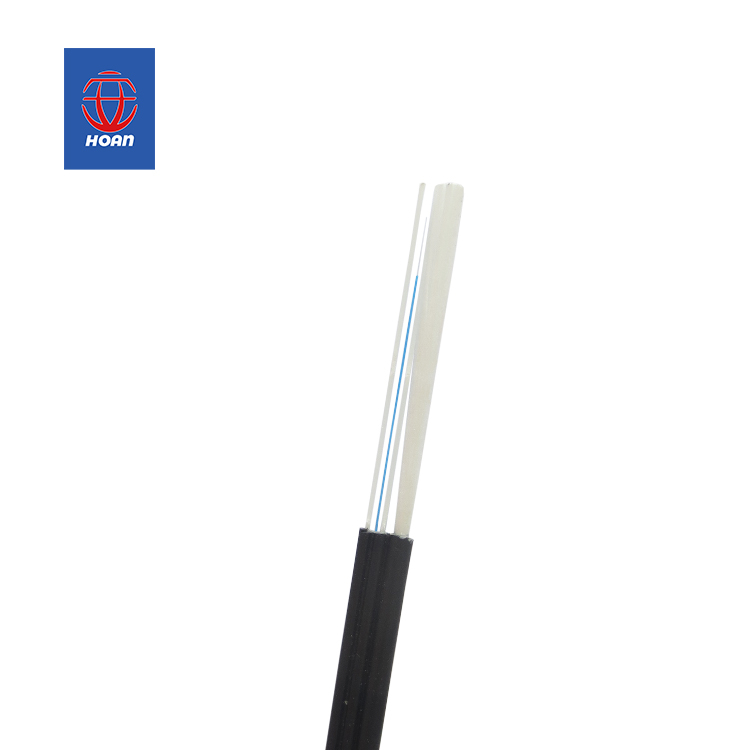

Butterfly introduction optical cable

Small outer diameter, light weight, flame retardant, easy to peel, and high flexibility;

Reinforcement members are made of glass fiber rods, aramid reinforced fiber rods or fine steel wires;

The self-sealing butterfly cable suspension wire adopts steel wire or steel strand, which has good tensile strength;

Good flame retardant performance.

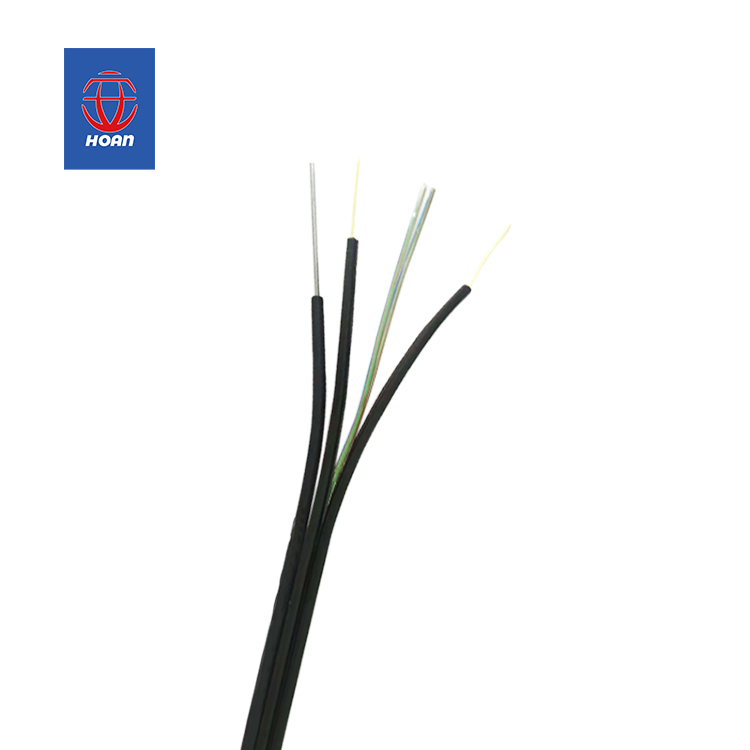

Dual-core side-by-side butterfly optical cable

Can realize two butterfly optical cables laid at one time;

Each core of the optical cable can be independently terminated without branching.

Circular light cable

Small outer diameter, aramid yarn reinforcement, high flexibility and high strength.

Microfiber tube butterfly-type optical cable

Microfiber tubes replace the optical fibers in traditional butterfly cables, with a capacity of 2-12 cores.

The micro-beam tube optical unit features a fully dry design with compact dimensions and ultra-thin walls. Its 12-core micro-beam tube has a diameter of just 1.4mm.

Micro-slip tubes and butterfly sleeves are easy to separate, facilitating connection and simplifying installation and maintenance.

Two parallel reinforcement members provide the optical cable with excellent compression resistance and protect the optical fiber.

The optical cable has simple structure, light weight and strong practicability

The micropipe structure has better attenuation transmission characteristics

Low-smoke halogen-free (LSZH) flame-retardant outer sheath

Tubular butterfly cable introduction

Suitable for pipe entry;

Good water resistance and tensile strength;

Excellent horizontal waterproof performance.

Waterproof tail cable

Good horizontal waterproof performance, good tensile performance;

Each unit cable can be terminated individually.

Operating temperature: -20℃ ~ +70℃

transmission performance

Note: Other optical fibers can also be provided based on user requirements.

Butterfly cable for outdoor wiring

（GJYXCH、GJYXDCH、GJYXFCH、GJYXFDCH）

1 Traditional butterfly-type optical cable

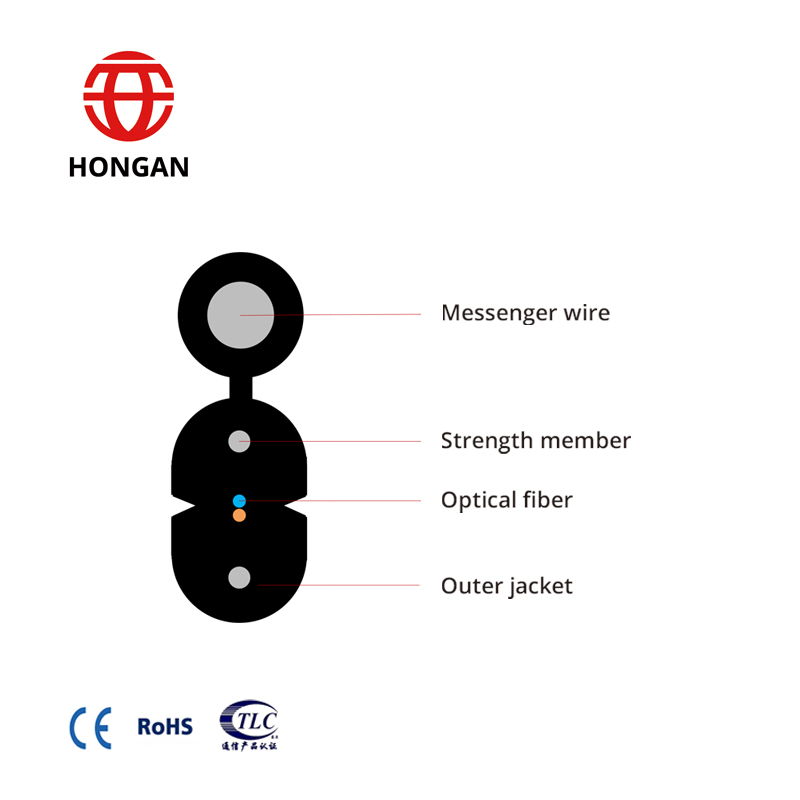

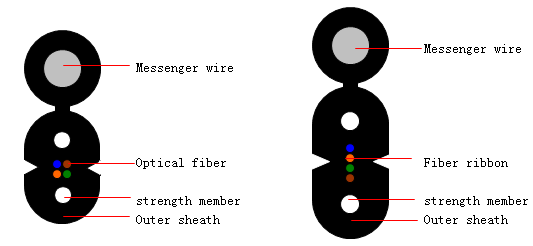

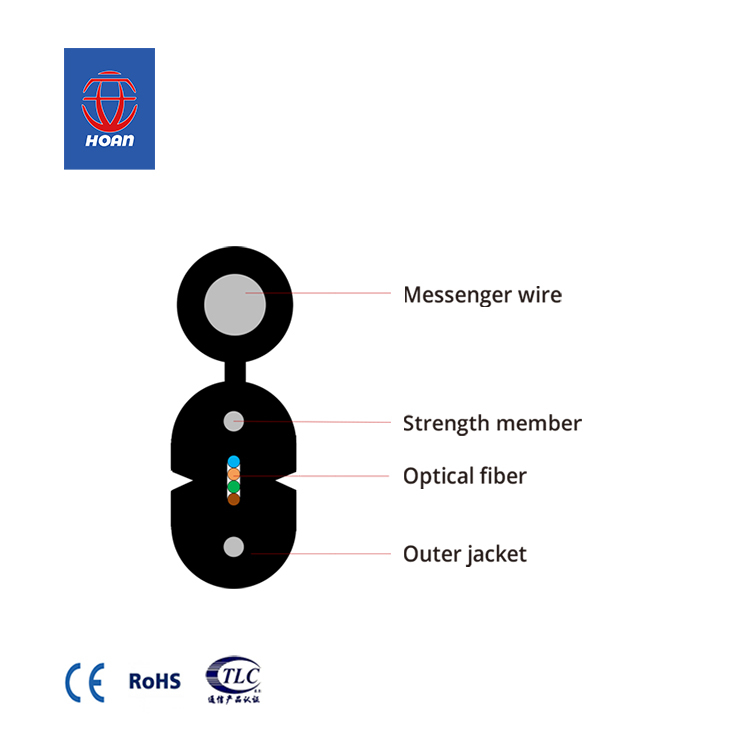

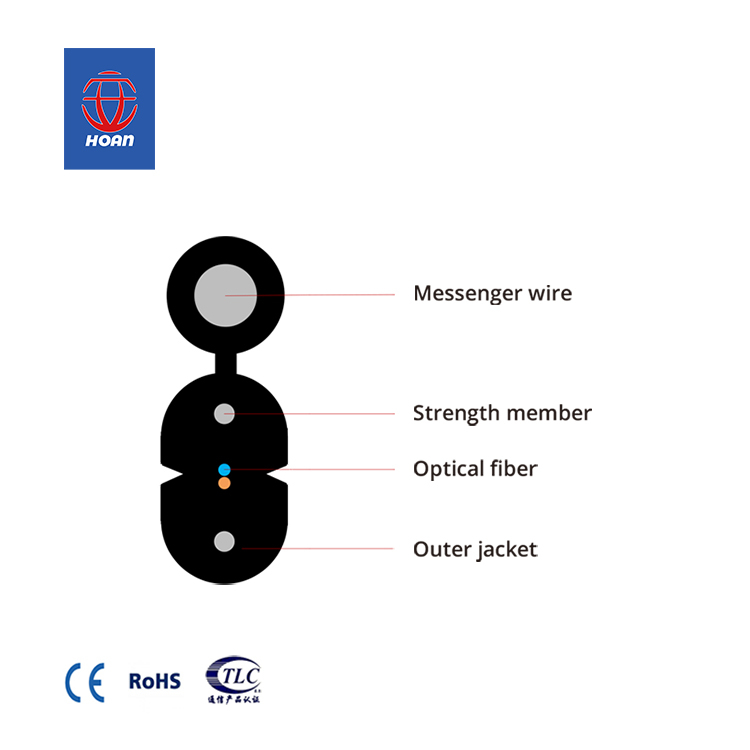

Product structure diagram:

product description ：

GJYXCH (Metal Reinforcement, LSZH Sheath, Self-supporting)

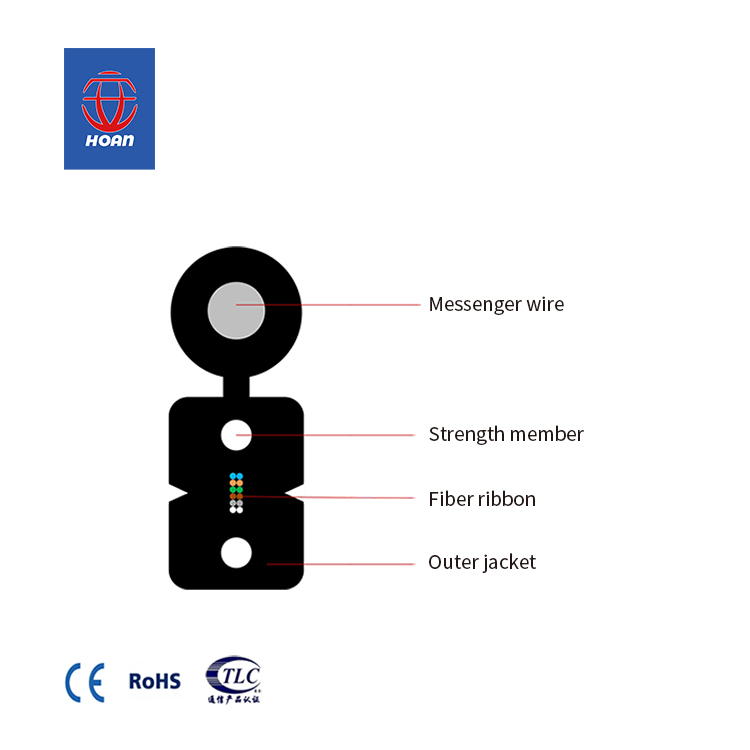

GJYXDCH (fiber optic tape, metal reinforcement, LSZH sheath, self-supporting)

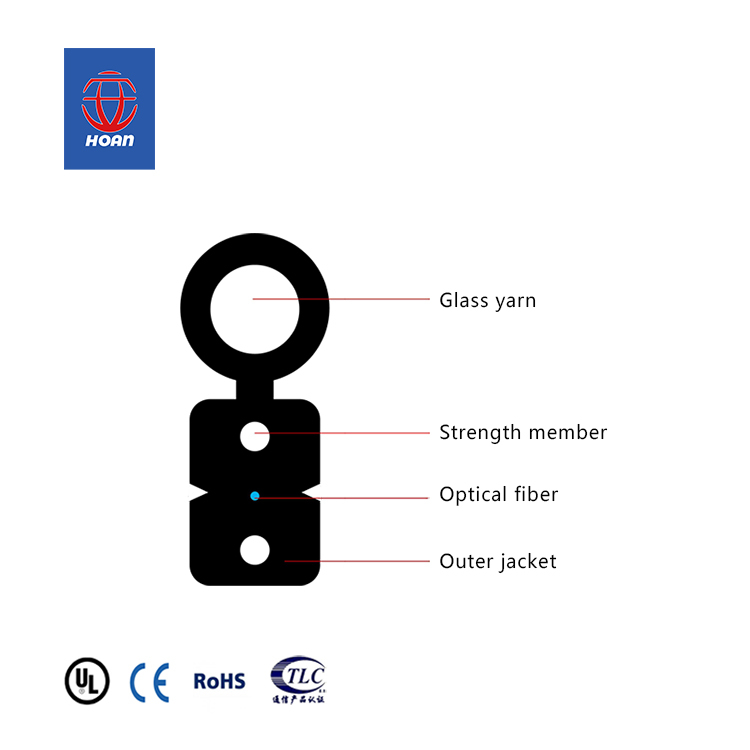

GJYXFCH (Non-metallic Reinforcement, LSZH Sheath, Self-supporting)

GJYXFDCH (Fiber Optic Tape, Non-Metallic Reinforcement, LSZH Sheath, Self-Propelled)

operative norm ：

YD/T 1997.1-2014 Introduction of Optical Cables for Communications Part 1: Butterfly Optical Cables

Technical parameters (typical values):

Note 1. The corresponding technical parameters can be adjusted according to customer requirements;

2. The system can be equipped with PVC or other customer-specified sheath materials based on requirements.

3. The suspension wire can be reinforced with aramid yarn as per customer requirements.

2-core parallel butterfly optical cable

Product structure diagram:

product description ：

Dual-core Independent GJYXCH (with metal reinforcement, LSZH sheath, and non-self-supporting design)

Dual-core Independent GJYXFCH (Non-metallic Reinforcement, LSZH Sheath, Non-self-supporting)

operative norm ：

YD/T 1997.1-2014 Introduction of Optical Cables for Communications Part 1: Butterfly Optical Cables

Technical parameters (typical values):

Note 1. The corresponding technical parameters can be adjusted according to customer requirements;

2. The system can be equipped with PVC or other customer-specified sheath materials based on requirements.
