Circular light cable
Small outer diameter, high flexibility and high strength.
Operating temperature: -20℃ ~ +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.

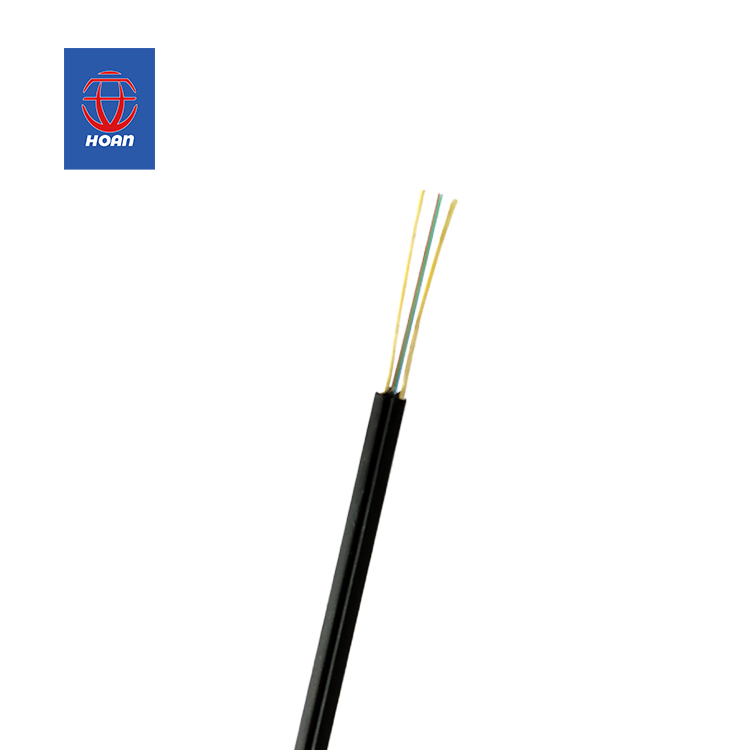

GJXFH

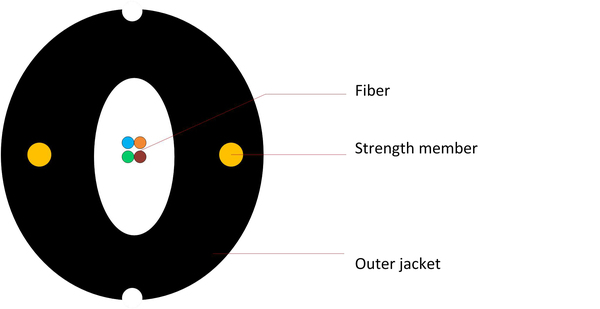

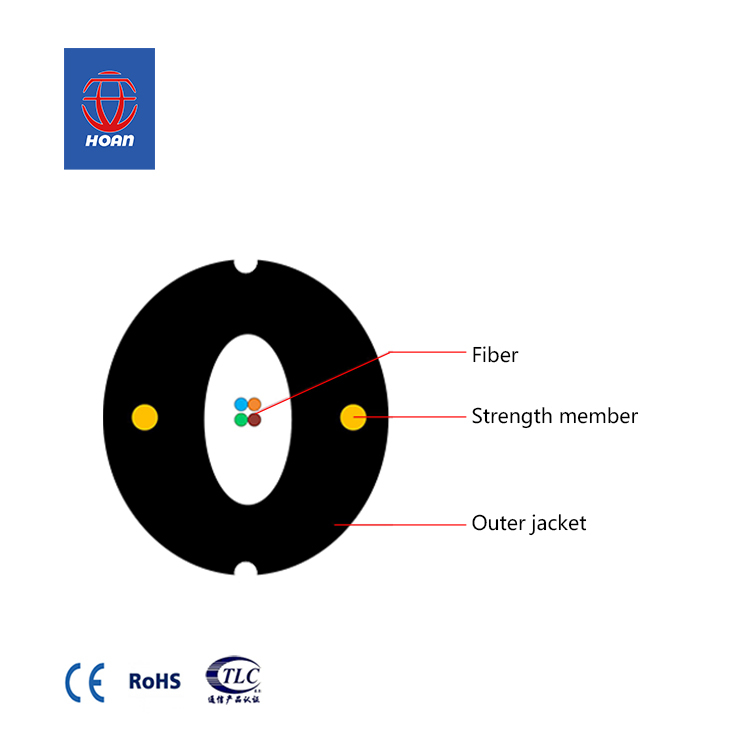

Product structure diagram:
product description ：
GJXFH (Non-metallic Reinforced Component with Low Smoke Halogen-Free Polyolefin Sheath)
operative norm ：
YD/T 1258.4-2005 Indoor Optical Cable Series: Multi-core Optical Cable
Technical parameters (typical values):
Number of cores | FRP diameter | external diameter | Weight (kg/km) | Stretching force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
1、2、4 | 0.5 | 3.3 | 10.2 | 40 | 80 | 500 | 1000 | 15 | 30 |
Note 1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
