Base station RF remote optical cable product series
Product Application:
The optical cable is suitable for communication base station introduction.
Product features:
High strength aramid reinforcement, small outer diameter, light weight, good tensile strength;
Each unit cable can be directly terminated with a standard connector;
The use of LSZH flame retardant material meets the requirements of flame retardant and environmental protection.
Operating temperature: -20℃ ~ +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.

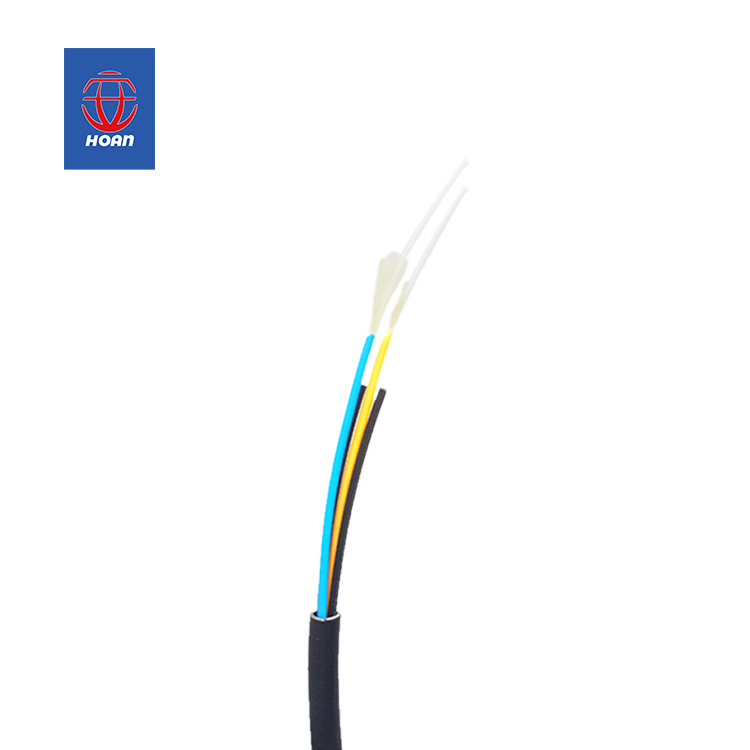

Φ7.0 RF Remote Optical Cable GYFJH

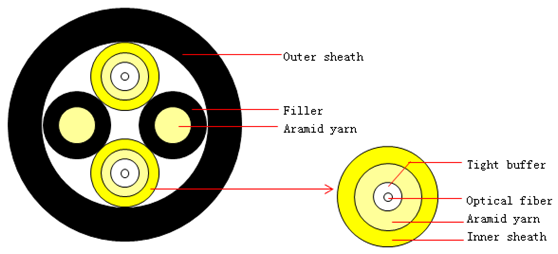

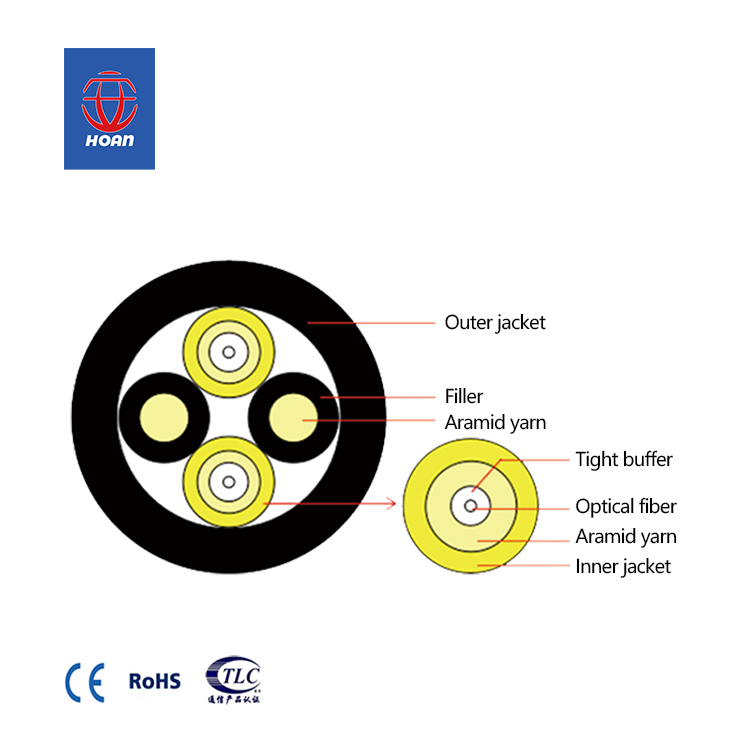

Product structure diagram:
product description ：
GYFJH (Non-metallic reinforcement, tight-fitting structure, LSZH sheath)
operative norm ：
YD/T 2289.1-2011 Wireless Radio Frequency Remote Unit (RRU) Cables Part 1: Optical Cables
Technical parameters (typical values):
Number of cores | structure | specifications （mm） | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
1-4 | 1+4 | 7.0 | 47 | 200 | 400 | 1000 | 2200 | 10D | 20D |
pour
1. The corresponding technical parameters can be adjusted according to customer requirements;
2. The system can be equipped with PVC or other customer-specified sheath materials as required.
