Field optical cable product series
Product Application:
This kind of optical cable is specially used for field, special environment laying or repeated use.
Product features:
Small outer diameter, light weight, good tensile strength;
Polyurethane sheath has excellent flame retardant, pressure resistance, wear resistance and softness;
Wide operating temperature range.
Operating temperature: -40℃ ~ +80℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.

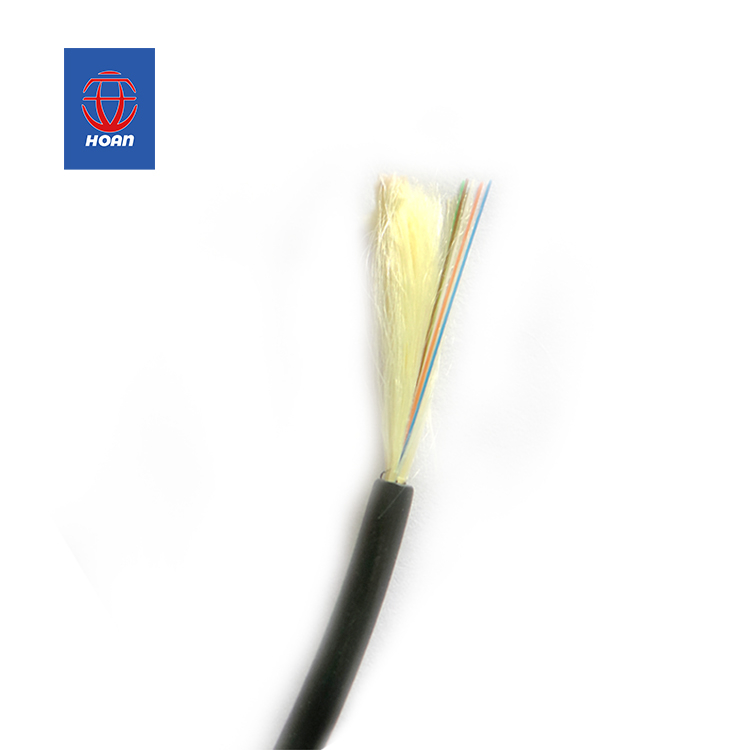

Field Optical Cable GYFJZU

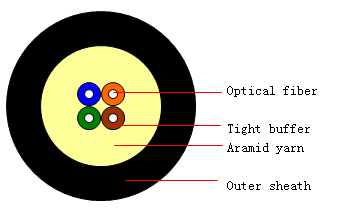

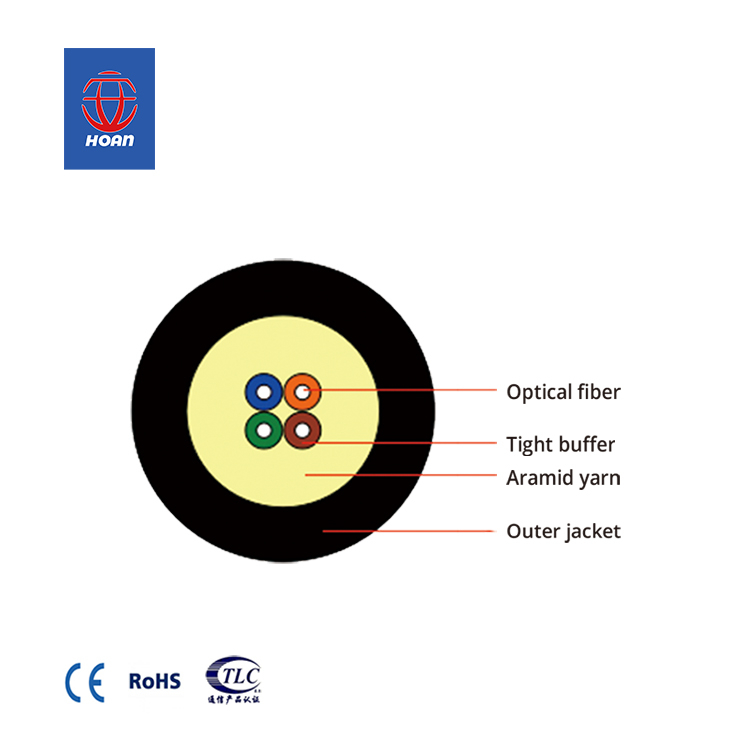

Product structure diagram:
product description ：
GYFJZU (Tight-Fit Structure, Aramid Reinforcement, Polyurethane Sheath)
operative norm ：
GJB 1428B-2009 General Specification for Optical Cables
Technical parameters (typical values):
Number of cores | specifications （mm） | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
1 | 3.0 | 400 | 800 | 200 | 1000 | 10D | 20D |
2 | 5.2 | 400 | 800 | 200 | 1000 | 10D | 20D |
4 | 5.2 | 400 | 800 | 200 | 1000 | 10D | 20D |
6 | 6.0 | 400 | 800 | 200 | 1000 | 10D | 20D |
pour
1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
