Indoor Infrared Cable Series
Product Application:
The cable is suitable for fiber to the home.
Product features:
Low cost, excellent wear resistance, high strength, good elasticity;
Low temperature resistance, good oil resistance, chemical resistance and environmental performance;
The product has good toughness and high hidden performance. It is easy to use, install and maintain. It is suitable for optical fiber to the home.
Operating temperature: -20℃ to +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.
GJI-Double Protection

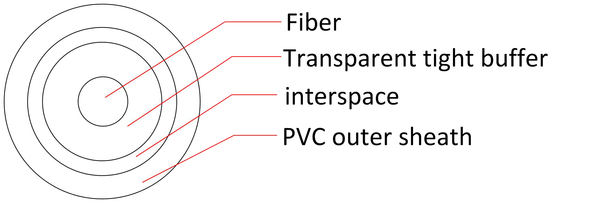

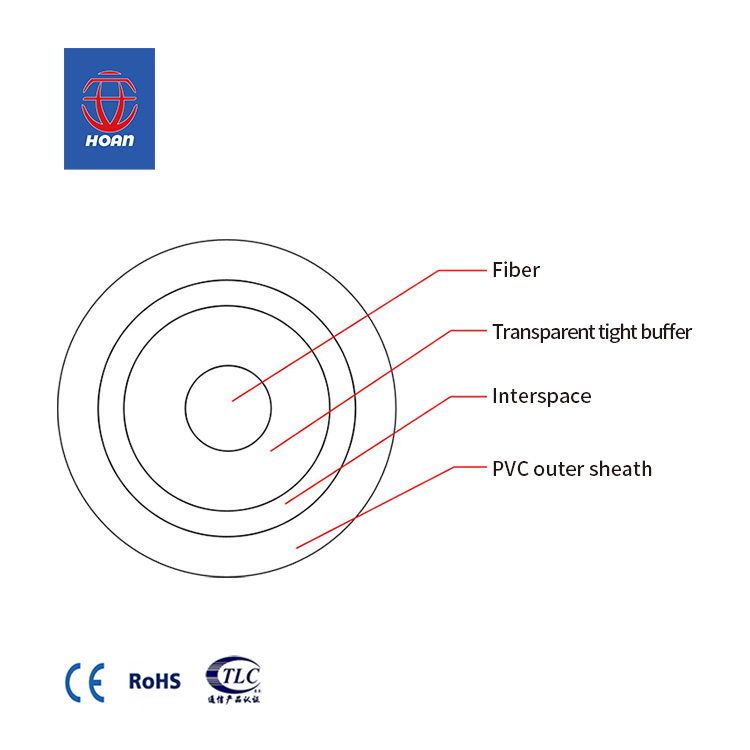

Product structure diagram:
product description ：

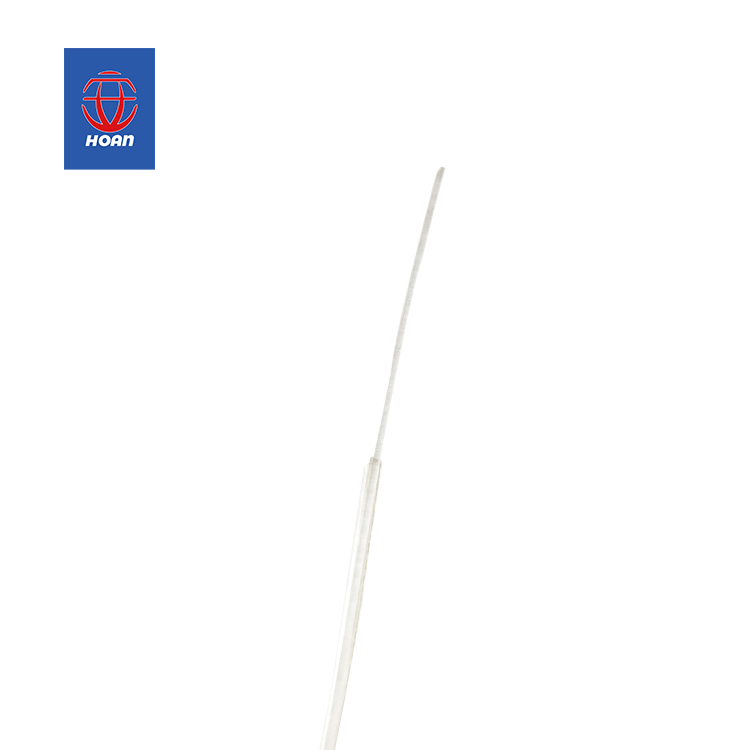

GJI-Double Protection (12mm transparent nylon inner sheath, PVC outer sheath)
operative norm ：
YD/T 1258-2005 Indoor Optical Cable Series
Technical parameters (typical values):
Number of cores | Inner sheath thickness (mm) | Outer sheath thickness (mm) | external diameter | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
1 | 0.9 | 0.3 | 1.5 | 3.0 | 5 | 20 | 200 | 500 | 5D | 20D |
pour
1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
