Three types of communication level twisted pair symmetric cable series
Product Application:
The transmission frequency is 16MHz, with a maximum transmission rate of 10Mbps (10Mbit/s). It is mainly used for voice, 10Mbit/s Ethernet (10BASE-T), and 4Mbit/s Token Ring.
operative norm ：
YD/T 1019-2013, ISO/IEC 11801, ANSI/TIA/EIA-568-C, UL444 (for indoor data cables), IEC61156
product features ：
Physical/Electrical Characteristics |
Propagation delay difference (maximum) | 45ns/100m | characteristic impedance | 4-100MHz 100±15Ω |
Working capacitance (maximum) | 5.6nF/100m | DC resistance (maximum) | 9.5Ω/100m at 20℃； |
Minimum dielectric strength between conductors | 2.5kV/2s | Allow bend radius | Not less than 8 times the cable's outer diameter |
transmission performance |
frequency (MHz) | damping (Max) (dB/100m) | near end crosstalk attenuation (Min) (dB/100m) | far end crosstalk attenuation （Min） (dB/100m) | return loss （Min） (dB) | Spread speed （Min） (m./s) | phase delay (Max) (ns/100m) |
4 | 4.1 | 53.3 | 49 | 18.8 | 0.604c | 552 |
8 | 5.8 | 48.8 | 42.9 | 19.7 | 0.610c | 547 |
10 | 6.5 | 47.3 | 41 | 20 | 0.612c | 545 |
16 | 8.2 | 44.2 | 36.9 | 20 | 0.614c | 543 |
Operating temperature: -20℃ to +60℃

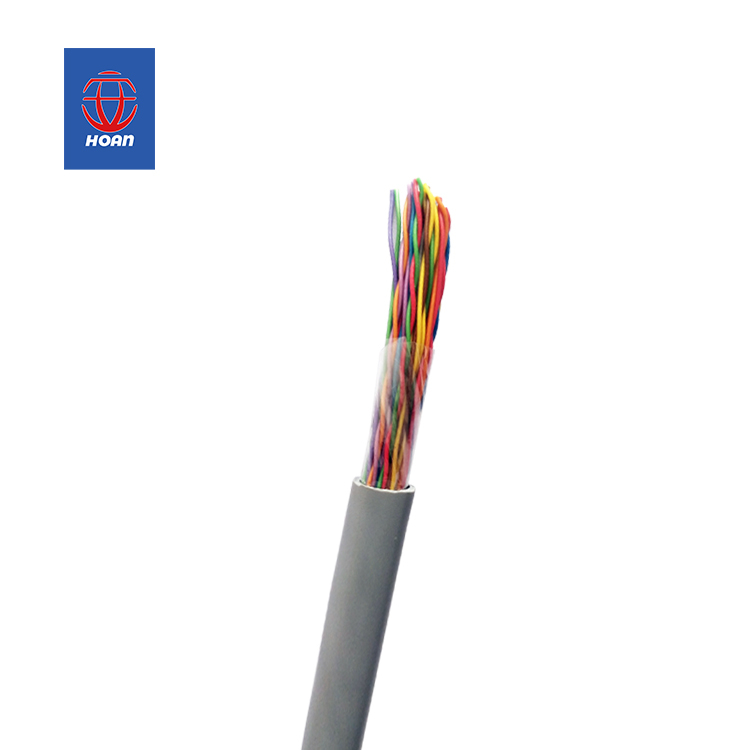

Three-category indoor non-screen digital communication horizontal twisted pair symmetric cable
UTP CAT3(HSYV3)

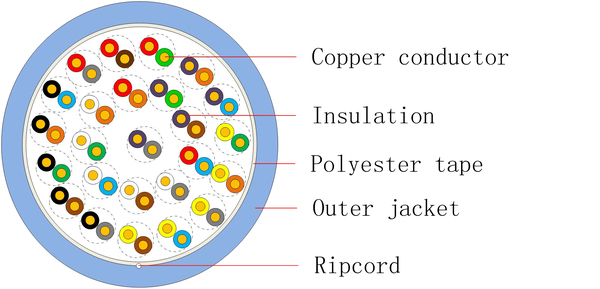

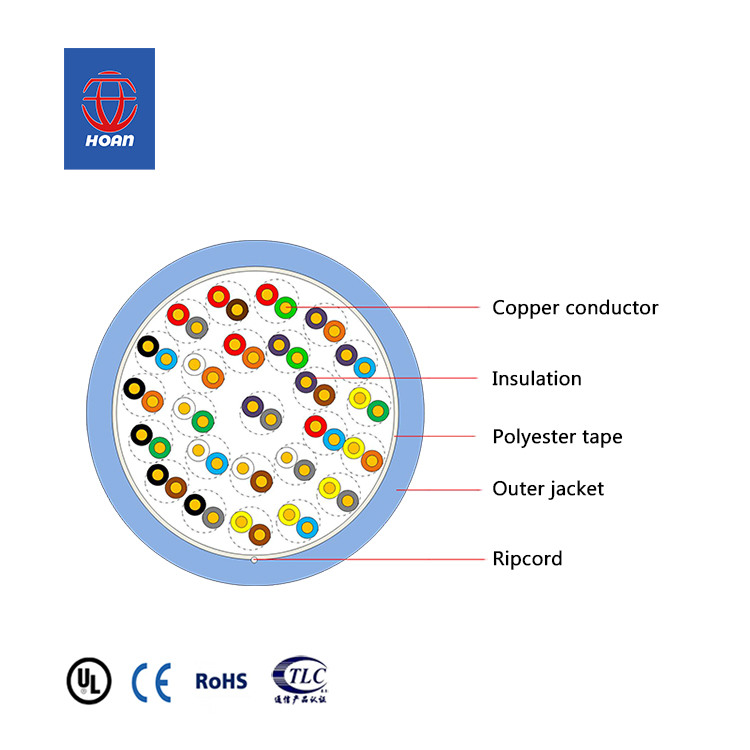

Product structure diagram:
product description ：
UTP CAT3 HSYV3 (Category 3, polyethylene-insulated, PVC-sheathed)
configuration parameter
model | wire gage | logarithm | external diameter （mm） |
HSYV3 | 24AWG | 25 | 9.1 |
HSYV3 | 26AWG | 25 | 10.3 |
Note 1. LSZH and other customer-specific sheath materials may be used as required.
