Category 5e communication level twisted pair symmetric cable series
Product Application:
10Base-T、100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T
operative norm ：
YD/T 1019-2013, ISO/IEC 11801, ANSI/TIA/EIA-568-C, UL444 (for indoor data cables), IEC61156
product features ：
Physical/Electrical Characteristics |
Propagation delay difference (maximum) | 45ns/100m | characteristic impedance | 4-100MHz 100±15Ω |
Working capacitance (maximum) | 5.6nF/100m | DC resistance (maximum) | 9.5Ω/100m at 20℃； |
Minimum dielectric strength between conductors | 2.5kV/2s | Allow bend radius | Not less than 8 times the cable's outer diameter |
transmission performance |
frequency (MHz) | damping (Max) (dB/100m) | near end crosstalk attenuation (Min) (dB/100m) | far end crosstalk attenuation （Min） (dB/100m) | return loss （Min） (dB) | Spread speed （Min） (m./s) | phase delay (Max) (ns/100m) |
4 | 4.1 | 53.3 | 49 | 18.8 | 0.604c | 552 |
8 | 5.8 | 48.8 | 42.9 | 19.7 | 0.610c | 547 |
10 | 6.5 | 47.3 | 41 | 20 | 0.612c | 545 |
16 | 8.2 | 44.2 | 36.9 | 20 | 0.614c | 543 |
20 | 9.3 | 42.8 | 35 | 20 | 0.615c | 542 |
25 | 10.4 | 41.3 | 33 | 19.3 | 0.616c | 541 |
31.25 | 11.7 | 39.9 | 31.1 | 18.6 | 0.617c | 540 |
62.5 | 17.0 | 35.4 | 25.1 | 16.5 | 0.619c | 539 |
100 | 22.0 | 32.3 | 21 | 15.1 | 0.620c | 538 |
Operating temperature: -20℃ to +60℃
Class 5e indoor digital communication system with twisted pair symmetric cable

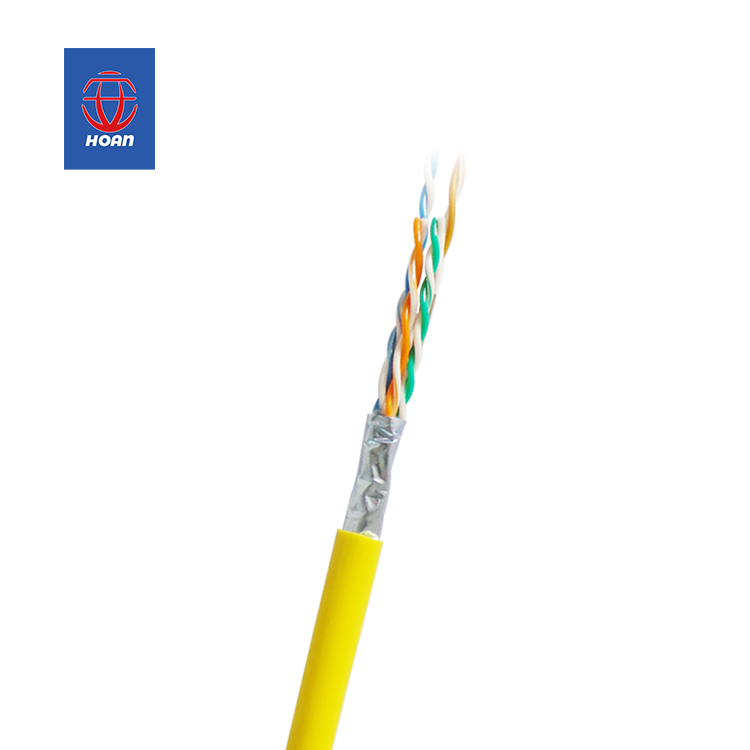

FTP CAT5e(HSYVP5e/HSYVVP5e)
Product structure diagram:
product description ：
FTP CAT5e HSYVP5e (Category 5e Shielded, Polyethylene Insulated, PVC-Coated)
FTP CAT5e HSYVVP5e (Category 5e Shielded Cable with Polyethylene Insulation, PVC Inner Sheath, and PVC Outer Sheath)
configuration parameter
model | wire gage | logarithm | external diameter （mm） |
HSYVP5e | 24AWG | 4 | 6.5 |
HSYVVP5e | 24AWG | 4 | 7.5 |
Note 1. LSZH and other customer-specific sheath materials may be used as required.
