Six categories of communication level twisted pair symmetric cable series
Product Application:
10Base-T、100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T、1000Base-TX、10GBase-T
operative norm ：
YD/T 1019-2013, ISO/IEC 11801, ANSI/TIA/EIA-568-C, UL444 (for indoor data cables), IEC61156
product features ：
Physical/Electrical Characteristics |
Propagation delay difference (maximum) | 45ns/100m | characteristic impedance | 4-250MHz 100±15Ω |
Working capacitance (maximum) | 5.6nF/100m | DC resistance (maximum) | 7.5Ω/100m at 20℃ |
Minimum dielectric strength between conductors | 2.5kV/2s | Allow bend radius | Not less than 8 times the cable's outer diameter |
transmission performance |
frequency (MHz) | damping (Max) (dB/100m) | near end crosstalk attenuation (Min) (dB/100m) | far end crosstalk attenuation （Min） (dB/100m) | return loss （Min） (dB) | Spread speed （Min） (m./s) | phase delay (Max) (ns/100m) |
4 | 3.8 | 66.3 | 56 | 23 | 0.604c | 552 |
8 | 5.3 | 61.8 | 49.9 | 24.5 | 0.610c | 547 |
10 | 6.0 | 60.3 | 48 | 25 | 0.612c | 545 |
16 | 7.6 | 57.2 | 43.9 | 25 | 0.614c | 543 |
20 | 8.5 | 55.8 | 42 | 25 | 0.615c | 542 |
25 | 9.5 | 54.3 | 40 | 24.3 | 0.616c | 541 |
31.25 | 10.7 | 52.9 | 38.1 | 23.6 | 0.617c | 540 |
62.5 | 15.4 | 48.4 | 32.1 | 21.5 | 0.619c | 539 |
100 | 19.8 | 45.3 | 28 | 20.1 | 0.620c | 538 |
200 | 29.0 | 40.8 | 22 | 18 | 0.622c | 537 |
250 | 32.8 | 39.3 | 20 | 17.3 | 0.622c | 536 |
Operating temperature: -20℃ to +60℃
Six types of indoor fiber optic cables for digital communication with twisted pair symmetric cables

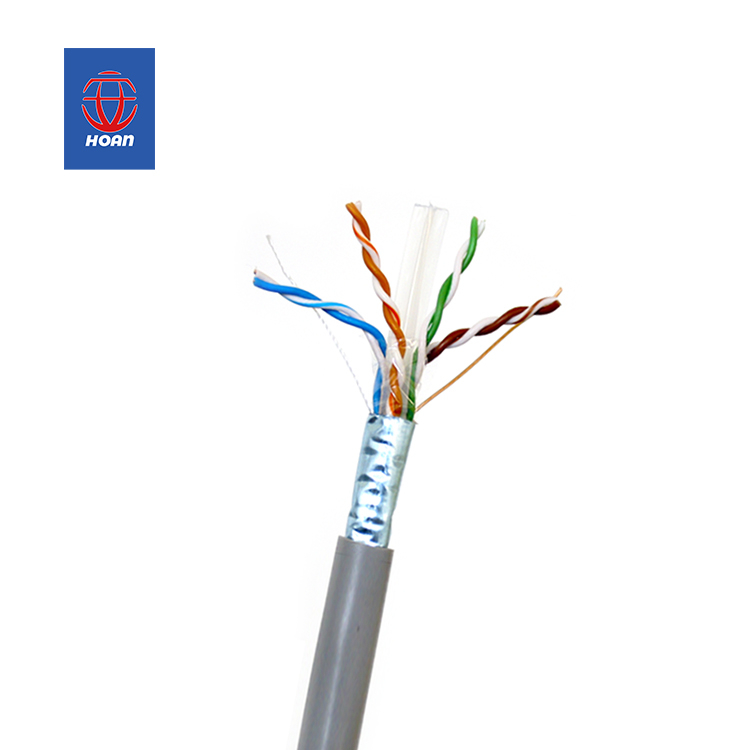

FTP CAT6(HSYVP6)

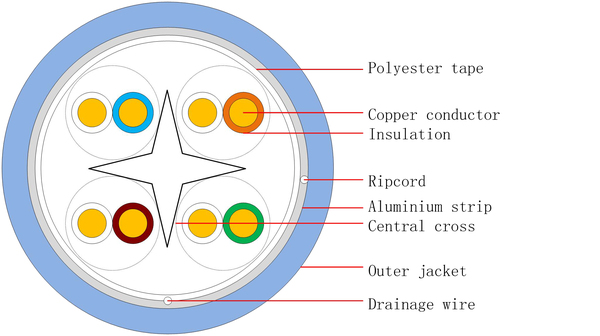

Product structure diagram:
product description ：
FTP CAT6 HSYVP6 (Category 6 shielded cable with polyethylene insulation and PVC sheath)
configuration parameter
model | wire gage | logarithm | external diameter （mm） |
HSYVP6 | 23AWG | 4 | 7.8 |
Note 1. LSZH and other customer-specific sheath materials may be used as required.
